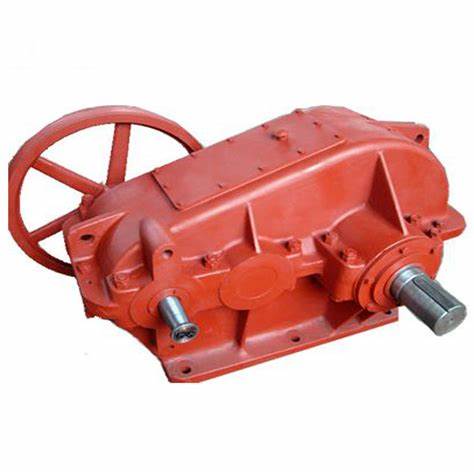

]]>The gear and gear reducer produced by our company utilize Lufkin herringbone gear technology. Gear processing is performed with specialized gear equipment, featuring a left and right helix angle of 30o. The diameter is controlled using specialized tools and an expansion method. Due to the characteristics of gear planing, our herringbone gears benefit from balanced forces, no axial force, and enhanced load-bearing capacity, resulting in a longer lifespan.
The reducer casing and cover undergo annealing before processing, which reduces casting stress by 90%. This ensures that the joint surfaces can be disassembled without deformation.
Product Line：
1.LUFKIN 80D, 114D, 160D, 228D, 320D, 456D, 640D, 912D 1280D pumping unit reducer and gear;
2.AMERICAN D114G, D 160G, D 228, 320F, 456F, D 640F, D912G pumping unit reducer and gear.。
Reducer products are strictly controlled according to API 11E standards
? Horizontal split cover gear housing design, easy to maintain on site.
? Precisely machined herringbone gear, uniform force, strong bearing capacity, longer life.
? All shafts are made of alloy steel, heat treated and precision machined to tight tolerances.
? Large brass sleeve on low speed shaft with high accuracy and long life. (LUFKIN)
? Integrated forced lubrication system, stable and reliable.
? Oil scraping components are installed from the upper part of the driving wheel, and the structural force is better than the lubricating effect.
? All parts are fully interchangeable with the LUFKIN and American gearbox.
Herringbone Gear Reducer最先出現在DEZHOU L&A PETROLEUM MACHINERY CO.,LTD。
]]>
Type SDD Manual Tong is an essential tool in oil drilling operation to make-up and break-out drill pipe, casing joint and coupling.It can be adjusted by changing latch lug jaws and handling shoulders.All the tongs we offer are API 7K & ISO certificated.
| Model | Handle shoulder | Handle OD mm(in) | Torque | |
| in | mm | KN.m | ||
| SDD 4“-17“/140 | 1 | 4-8 1/2 | 101.6-215.9 | 140 |
| 2 | 8 1/2-12 | 215.9-304.8 | 140 | |
| 3 | 12-15 | 304.8-381 | 105 | |
| 4 | 15 3/4 | 400.1 | 140 | |
| 5 | 16-17 | 406.4-431.8 | 85 | |
Type WWB Manual Tongs最先出現在DEZHOU L&A PETROLEUM MACHINERY CO.,LTD。
]]>

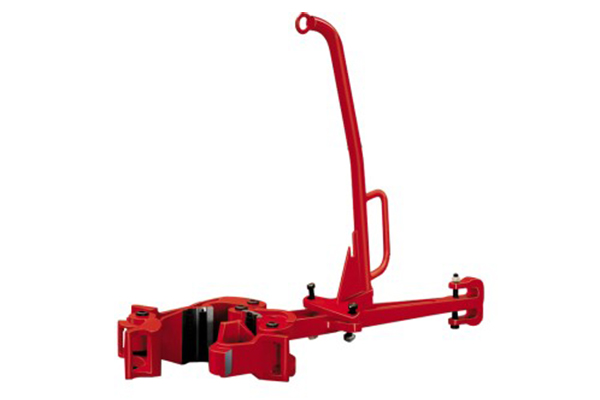

WWB Manual Tong is an essential tool in oil drilling operation to fasten or remove the screws of drill pipe and casing joint or coupling. It can be adjusted by changing latch lug jaws.
The WWB elevator tong belongs to the Web wilson series of products.It belongs to the same series of products as the AAX type elevator tong.
Maximum torque：48KN.m
| No.of Latch Lug Jaws | Size Range | Rated Torque | ||
| in | mm | lb·ft | KN·m | |
| 1# | 2 3/8-3 3/4 | 60.3-95.25 | 35000 | 48 |
| 2# | 3 1/2-4 5/8 | 88.9-117.48 | ||
| 3# | 4 1/2-5 3/4 | 114.3-146.05 | ||
| 4# | 5 1/4-7 1/4 | 133.35-184.15 | ||
| 5# | 6 7/8-8 5/8 | 174.63-219.08 | ||
| 6# | 9-10 3/4 | 228.6-273.05 | 25000 | 35 |
Type WWB Manual Tongs最先出現在DEZHOU L&A PETROLEUM MACHINERY CO.,LTD。
]]>

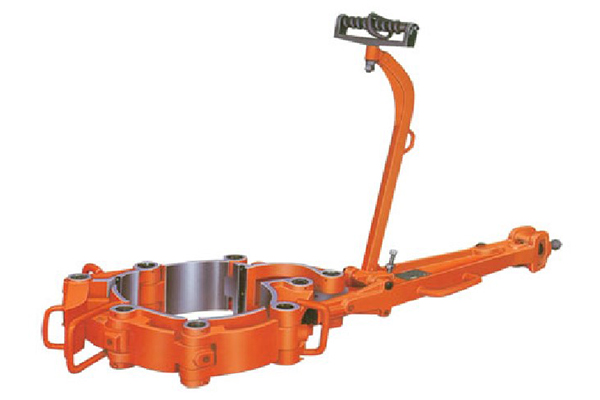

Type Q340-762/35(133/8-30in) Casing Tong is capable of making up or breaking out the screws of casing and casing coupling in drilling operation.
| Handle OD | Max. Torque(Kn.m) | |
| mm | in | |
| 340-368 | 13 3/8-14 1/2 | 35 |
| 368-406 | 14 1/2-16 | |
| 406-445 | 16-17 1/2 | |
| 445-483 | 17 1/2-19 | |
| 483-508 | 19-20 | |
| 508-546 | 20-21 1/2 | |
| 546-584 | 21 1/2-23 | |
| 610-648 | 24-25 1/2 | |
| 648-686 | 25 1/2-27 | |
| 686-724 | 27-28 1/2 | |
| 724-762 | 28 1/2-30 | |
DB Manual TongCasing Tong最先出現在DEZHOU L&A PETROLEUM MACHINERY CO.,LTD。
]]>

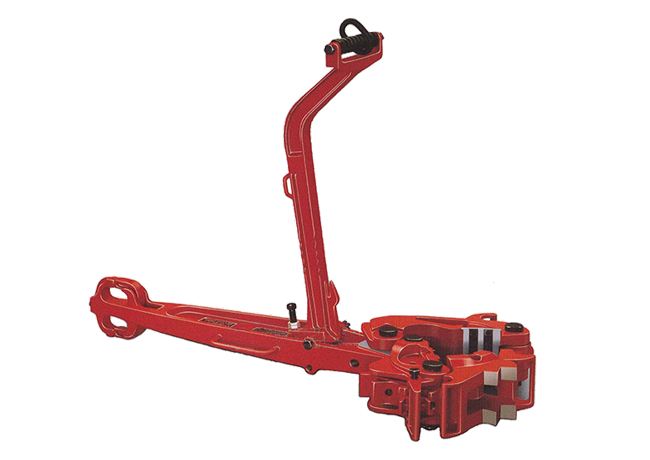

Type Q3 1/2-17/90 manual tong is used for making up or breaking out the screws of drill tools and casing joint or coupling. It can be adjusted by changing lug jaws latch and latch steps.
| No. of latch lug jaws | No. of hinge pin hole | Handle OD mm(in) | Max. Torque(KN.m) | Weight(Kg) |
| 1 | 1 | 89-152(3 1/2-6) | 90 | 370 |
| 2 | 127-178(5-7) | |||
| 3 | 152-210(6-8 1/4) | |||
| 2 | 1 | 203-244(8-9 5/8) | 90 | |
| 2 | 270-286(10 5/8-11 1/4) | |||
| 3 | 1 | 298-324(11 3/4-12 3/4) | 55 | |
| 2 | 340-365(13 3/8-14 3/8) | |||
| 4 | 2 | 406-432(16-17) | 55 |
DB Manual TongCasing Tong最先出現在DEZHOU L&A PETROLEUM MACHINERY CO.,LTD。
]]>

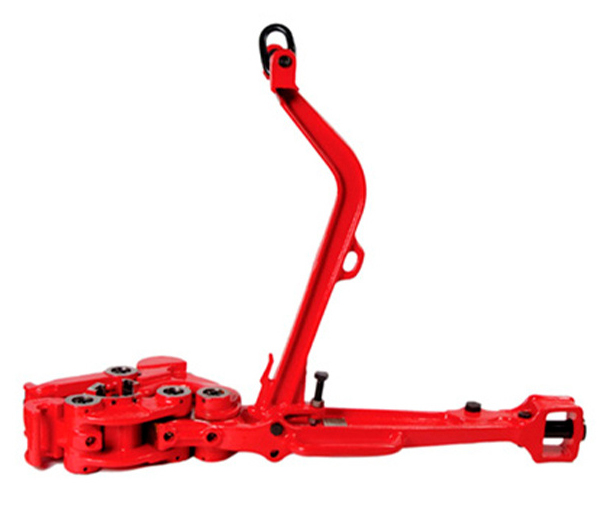

Type Q60-273/48(2 3/8-10 3/4in) C Manual Tong is an essential tool in oil drilling operation to fasten or remove the screws of drill pipe and casing joint or coupling. It can be adjusted by changing latch lug jaws and latch steps.
| No. of latch | No. of short latch | Handle OD m) | Handle OD (in) | Rated Capacity(KN.m) |
| mm | in | KN.m | ||
| 1 | 1# | 60.33-93.17 | 2 3/8-3 5/8 | 48 |
| 2 | 1# | 73.03-108 | 2 7/8-4 1/4 | |
| 3 | 1# | 88.9-133.35 | 3 1/2-5 1/4 | |
| 4 | 1# | 133.35-177.8 | 5 1/2-7 | |
| 5 | 2# | 177.8-219.08 | 7-8 5/8 | |
| 6 | 2# | 244.5-273.05 | 9 5/8-10 3/4 |
Type Q86-324/75(3 3/8-12 3/4) manual tong is an essential tool in oil drilling operation to fasten or remove the screws of drill pipe and casing joint or coupling. It can be adjusted by changing latch lug jaws and latch steps.
| No. of latch lug jaws | Handle shoulder | Handle OD mm(in) | Max. Torque KN.m |
| 5a | 1 | 86-105(3 3/8-4 1/8) | 55 |
| 2 | 105-133(4 1/8-5 1/4) | ||
| 5b | 1 | 108-133(4 1/8-5 1/4) | 75 |
| 2 | 127-146(5-5 3/4) | ||
| 3 | 152-171(6-6 3/4) | ||
| 5b-1 | 1 | 133-146(5-6) | 75 |
| 2 | 146-168(6-7) | ||
| 3 | 168-208(7-8) | ||
| 5c | 1 | 168-187(6 5/8-7 3/8) | 75 55 |
| 2 | 187-203(7 3/8-8) | ||
| 3 | 216-219(8 1/2-8 2/8) | ||
| 5b | 1 | 216-244(8 1/2-9 5/8) | 55 |
| 2 | 270-273(10 5/8-10 3/4) | ||
| 5e | 1 | 298(11 3/4) | 55 |
| 2 | 324(12 3/4) |

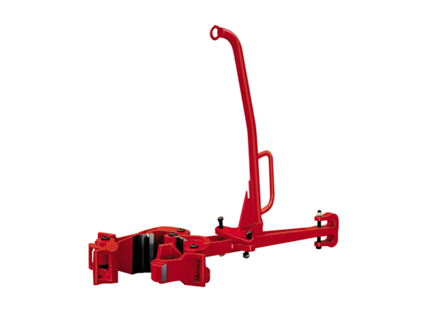

Type Q73-340/75(2 7/8-13 3/8in) AAX Manual Tong is an essential tool in oil drilling operation to fasten or remove he screws of drill pipe and casing joint or coupling. It can be adjusted by changing latch lug jaws.
| No.of Latch Lug Jaws | Size Range | Rated Torque | ||
| in | mm | lb·ft | KN·m | |
| 1# | 2 7/8-3 3/4 | 73-95.25 | 40000 | 55 |
| 2# | 3 1/2-4 1/2 | 88.9-114.3 | ||
| 3# | 4 1/4-5 1/4 | 107.95-133.35 | 55000 | 75 |
| 4# | 5-7 | 127-177.8 | ||
| 5# | 6 7/8-8 5/8 | 174.6-219.1 | ||
| 6# | 9-10 3/4 | 228.6-273.05 | 30000 | 40 |
| 7# | 10 3/4-11 3/4 | 273.05-298.45 | ||
| 8# | 13 3/8 | 339.7 | ||
Y Series Slip Type Elevator最先出現在DEZHOU L&A PETROLEUM MACHINERY CO.,LTD。
]]>

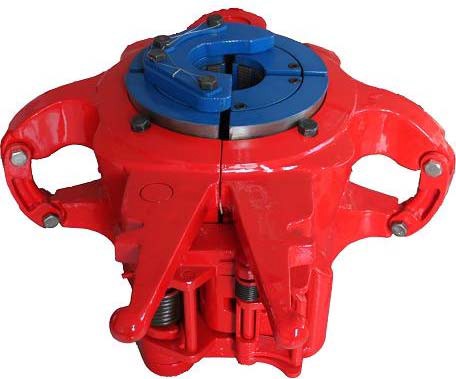

The slip type elevator is an indispensable tool in holding and hoisting drilling pipes, casing and tubing in the oil drilling and well tripping operation. It’s especially suitable for the hoisting of integrated tubing sub, integral joint casing and electric submersible pump column.
| Model | Size | Rated Cap. | |
| mm(in) | kN | Short Tons | |
| HYT | 60.3-88.9 (23/8-31/2) | 1350 | 150 |
| YT | 33.4-88.9 (1.315-31/2) | 675 | 75 |
| MYT | 33.4-73 (1.315-27/8) | 360 | 40 |
| LYT | 26.7-52.4 (1.05-11/16) | 180 | 20 |
| HYC | 88.9-139.7 (31/2-75/8) | 1800 | 200 |
| MYC | 88.9-117.8 (31/2-7) | 1125 | 125 |
| YC | 88.9-117.8 (31/2-7) | 675 | 75 |
Y Series Slip Type Elevator最先出現在DEZHOU L&A PETROLEUM MACHINERY CO.,LTD。
]]>

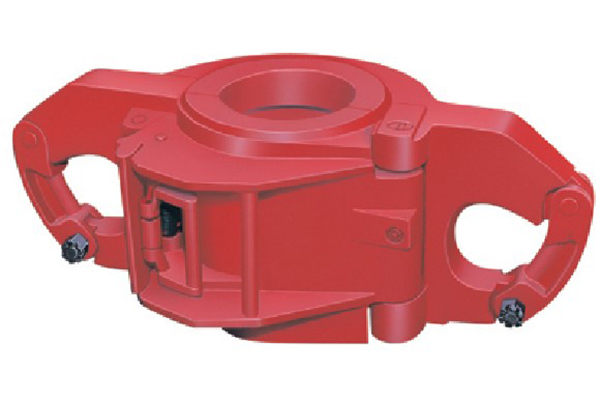

Model SLX side door elevator with square shoulder are suitable for handling tubing, casing, drill pipe and drill collar in oil and natural gas drilling, well construction. The products are designed and manufactured according to the requirement in API Spec
| Model | Size(in) | Rate Cap. (Short Tons) |
| SLX-65 | 3 1/4-14 3/8 | 65 |
| SLX-100 | 2 3/8-5 3/4 | 100 |
| SLX-150 | 5 1/2-13 5/8 | 150 |
| SLX-250 | 5 1/2-30 | 250 |
| SLX-350 | 4 1/2-14 | 350 |
